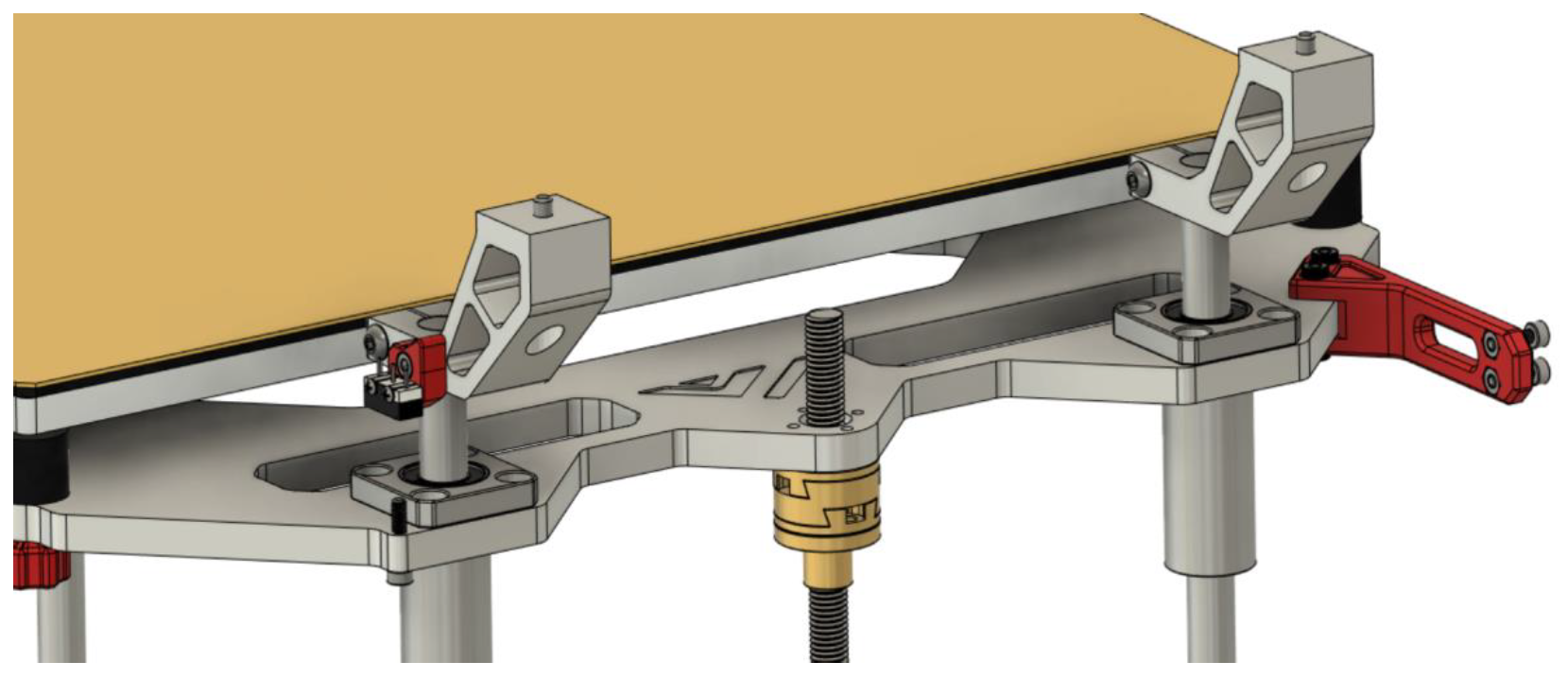

3.5 Z-Switch & bed chain

«««< Updated upstream

Part’s

=======

Parts

Stashed changes

Part	Location	Info
M2 x 10mm Quantity: 2	Layer: 3 Box: VZ330 Box 6
M3 x 6mm Quantity: 2	Layer: 3 Box: VZ330 Box 6
M3 x 8mm Quantity: 4	Layer: 3 Box: VZ330 Box 6
M3 x 10mm Quantity: 1	Layer: 3 Box: VZ330 Box 6
M3 x 45mm Quantity: 1	Layer: 3 Box: VZ330 Box 6
M3 nut Quantity: 1	Layer: 3 Box: VZ330 Box 6
M3 t-nut Quantity: 2	Layer: 3 Box: VZ330 Box 6
Microswitch Quantity: 1	Layer: 2 Box: VZ330 Box 2
Endstop holder Quantity: 1	Layer: 2 Box: VZ330 Box 2
Z-chain holder Quantity: 1	Layer: 2 Box: VZ330 Box 2

Step 1

«««< Updated upstream

Notes

=======

Stashed changes

Required

• Box 6 - M3 x 10mm
• Box 2

Stashed changes

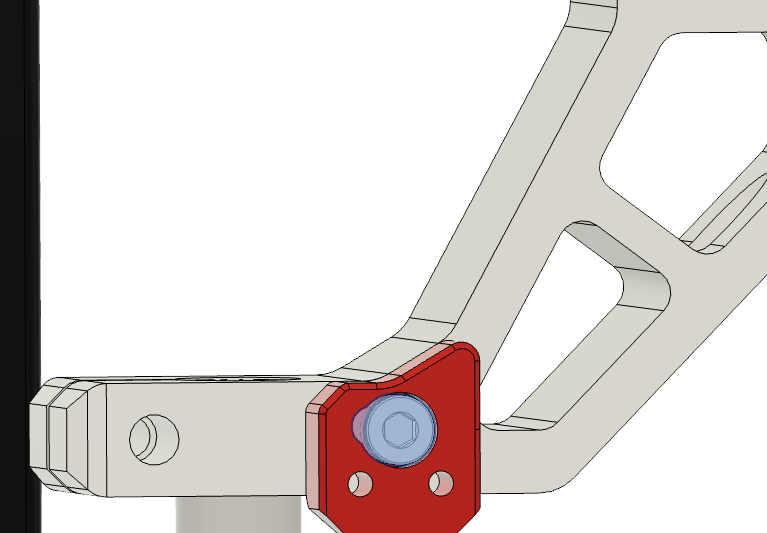

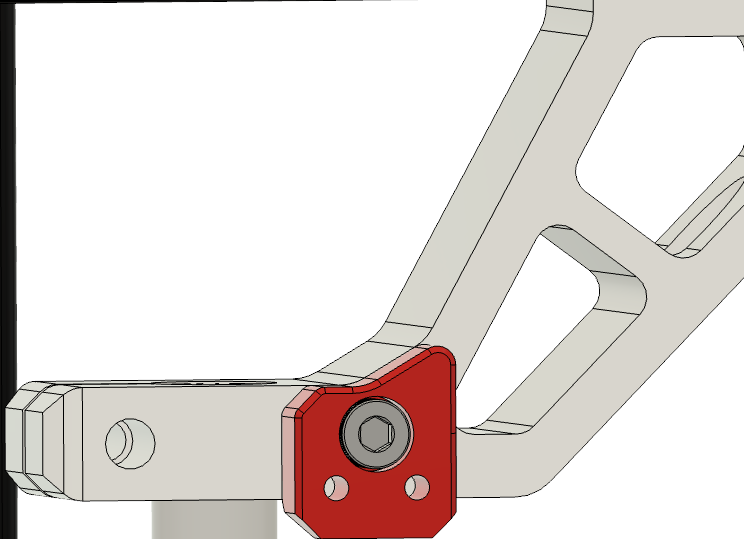

• Screw in the endstop holder with the M3 x 10mm screw to the top front z rod holder.

Step 2

Required

• Box 6 - M2 x 10mm
• Box 2

Stashed changes

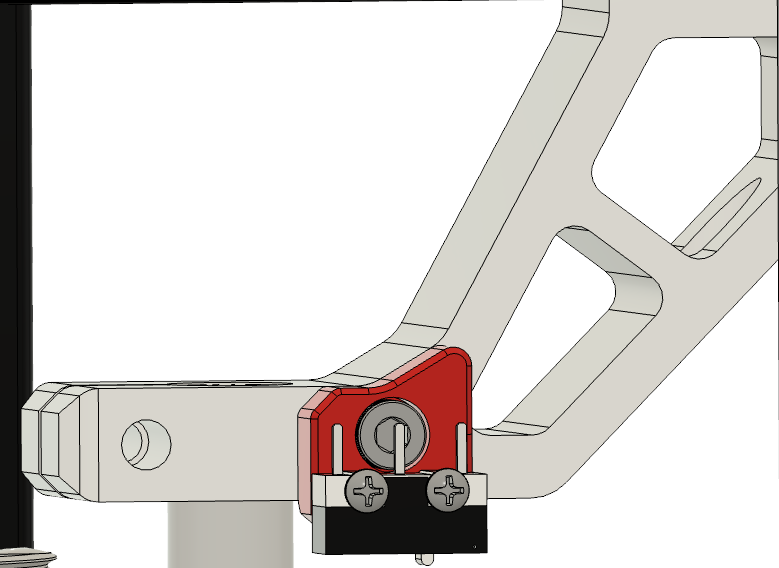

• The pin from the microswitch needs to point to the outerside of the frame

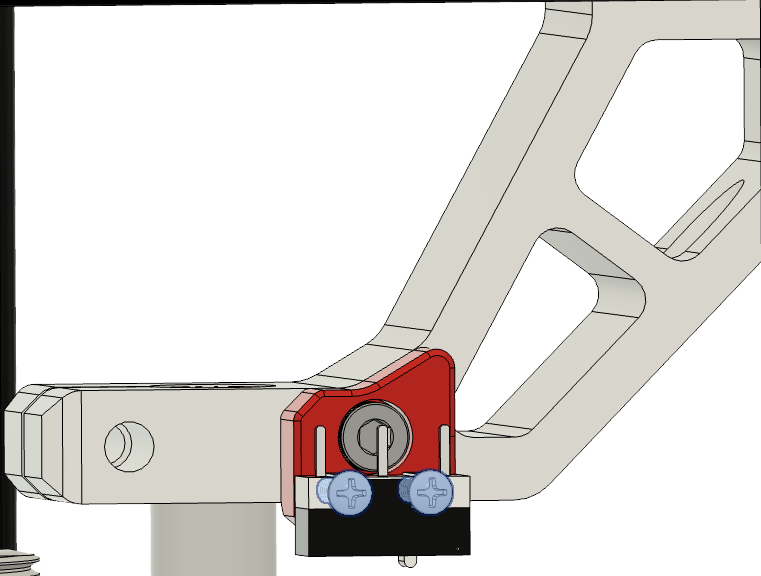

• Mount the microswitch to the endstop with the two M2 x 10mm screws.

Step 3

Required

• Box 6 - M3 x 45mm
• Box 6 - M3 nut

Stashed changes

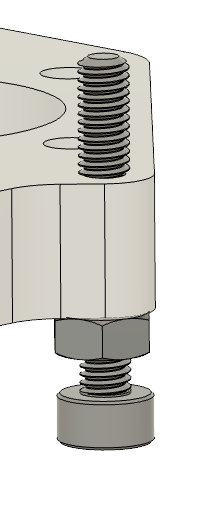

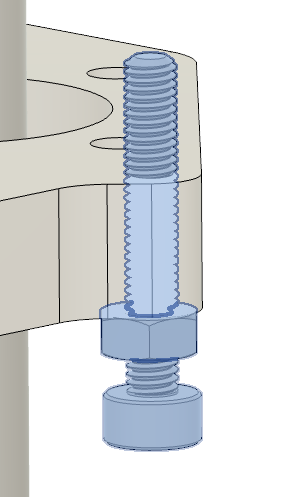

• Screw on the m3 nut to the M3 x 45mm screw
• Screw in the nut screw combination to the front right of the bed support piece in the corresponding hole
• The actual position of the screw will be aligned later in the build

Step 4

Required

• Box 6 - M3 x 6mm
• Box 6 - M3 x 8mm
• Box 2

Part	Location
M3 x 6mm Quantity: 2	Layer: 3 Box: VZ330 Box 6
M3 x 8mm Quantity: 2	Layer: 3 Box: VZ330 Box 6
Chain holder Quantity: 1	Layer: 2 Box: VZ330 Box 2

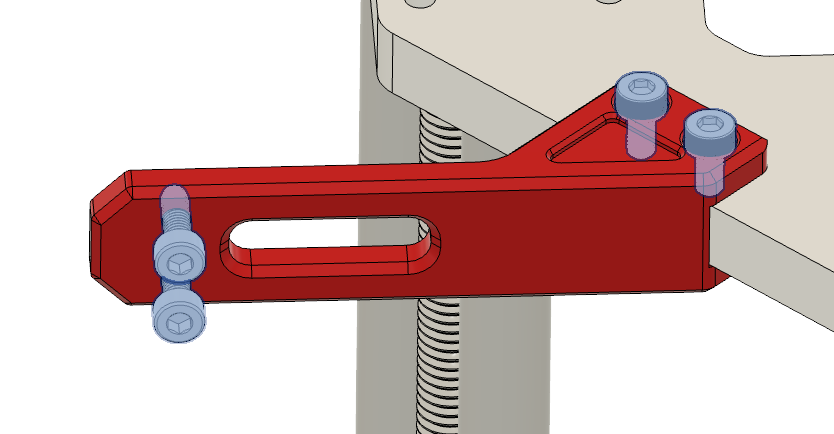

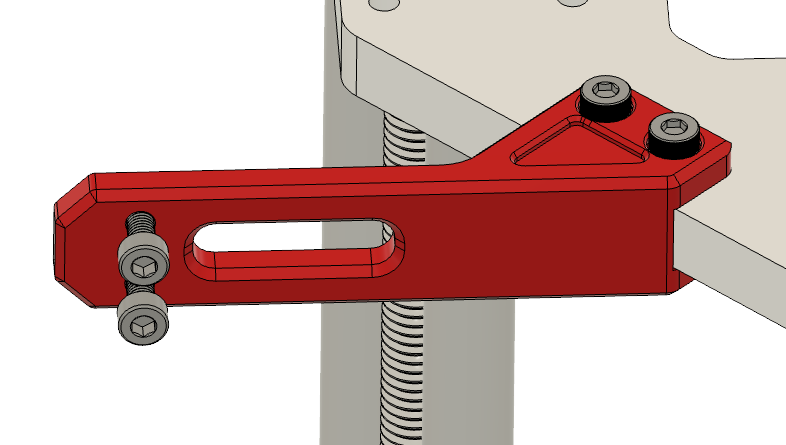

• Use the M3 x 6mm screws to attach the chain holder to the bed support
• Put in the M3 x 8mm screws in the other two holes, with them we later attach the chain to the holder

Step 5

Install chain […]
