Vz235 - Mellow Kit
3. Gantry
3.5 Belt routing and tensioning (AWD & 2WD)
3.5 Belt routing and tensioning (AWD & 2WD)

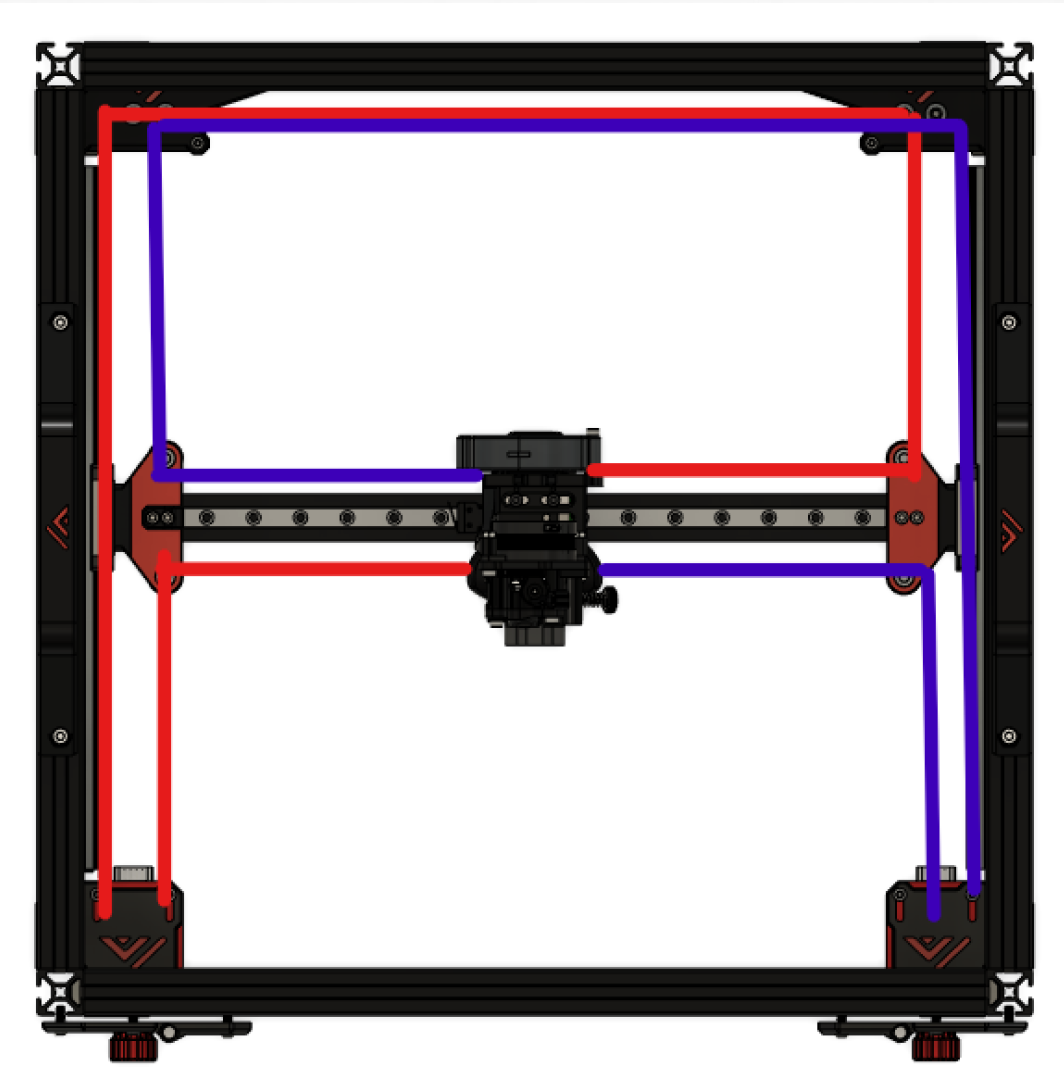

2WD

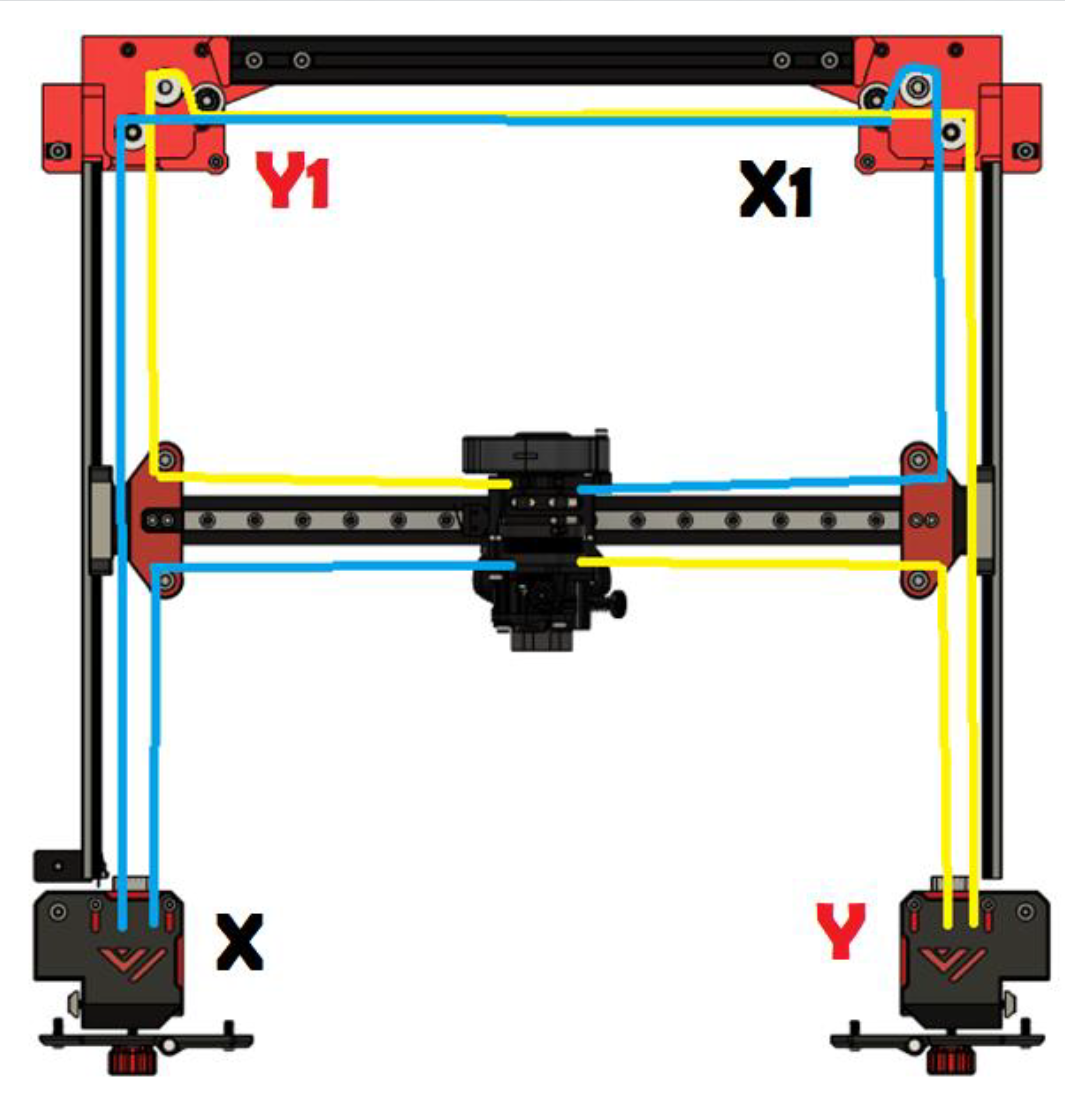

AWD
Printhead belt routing
• Make sure the motor’s in the front are in the loosest position possible, moved to the back of the motor mount.
