6. Electronics

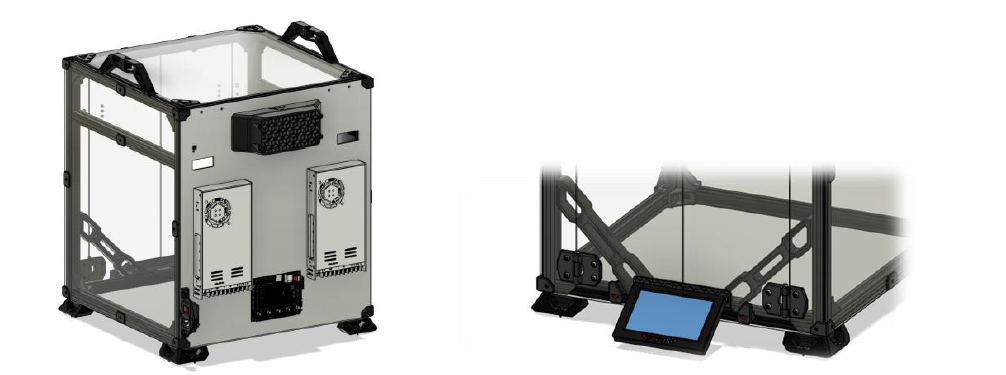

Overview
This is a general overview of the parts recommended for a VzBoT build. Everyone is free to use their own choice of parts. STL-files for other screens etc are not natively provided and may be found in the community mod section on GitHub and Discord. We trust everyone to use their own best judgement when wiring their printer, we do not recommend to do this without professional help if you are inexperienced in electronics.
BOM
| Material | Quantity | Notes |
|---|---|---|
| LED strip 310mm | 3 | - |
| Mainboard | 1 | - |
| BTT Pi TFT50 | 1 | - |
| PSU 24V | 1 | - |
| PSU 48V | 1 | - |
| Wires | - | - |
| C14 power switch | 1 | - |
| Power chord | 1 | - |
STL’s
| File name | Amount to print |
|---|---|
| LED strip bracket [print in vase mode] | 3 |
| Power switch bracket | 1 |
| Front screen cover | 1 |
| Rear screen cover | 1 |
| Screen mount | 1 |
| Door stopper | 1 |
